For the current waveform shown in figure, find (i) Peak current (ii) Average current (iii) Periodic time (iv) Frequency (v) Instantaneous current at t=3 ms.

## Problem

## Question

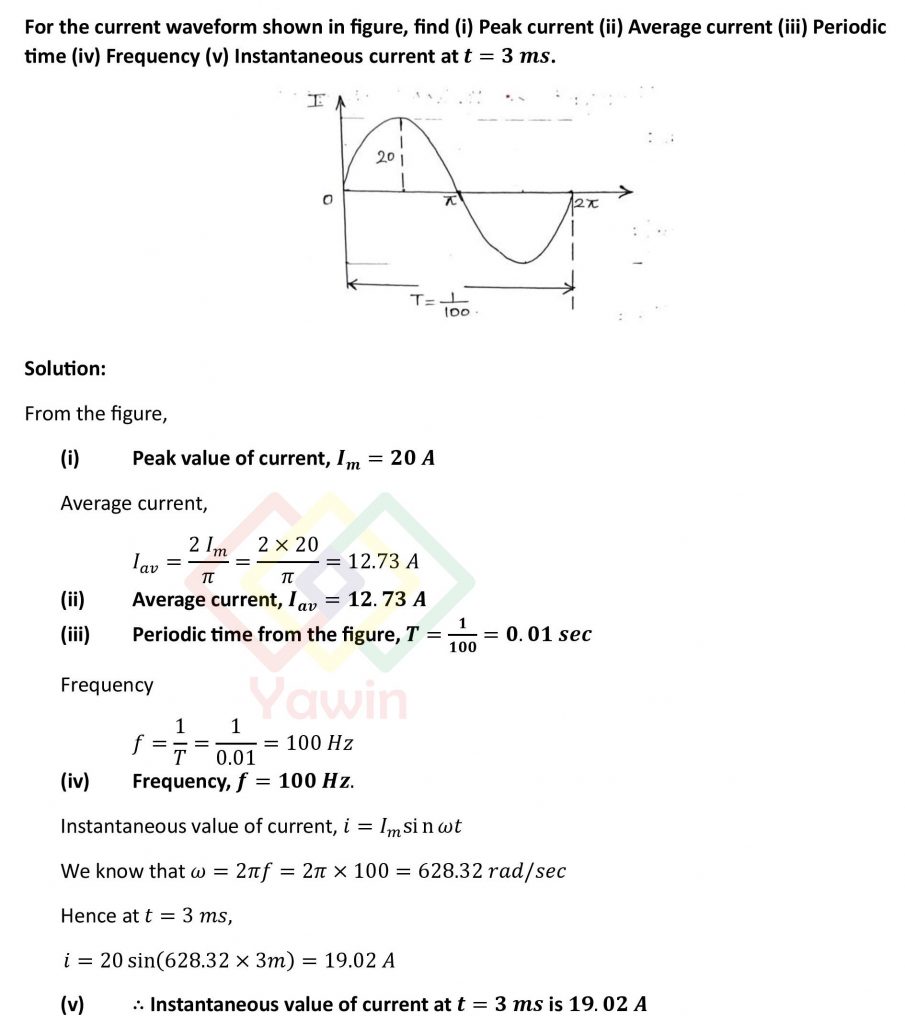

For the current waveform shown in figure, find (i) Peak current (ii) Average current (iii) Periodic time (iv) Frequency (v) Instantaneous current at t=3 ms.

## Topic

AC Circuit Fundamentals

Single phase AC Circuits

Three phase AC circuits

## AC Circuit Problems

- Two alternating currents in a parallel circuit are represented by i_1=5 sin(omega)t and i_2=10 sin((omega)t +60 deg). Find the resultant current.
- The equation for an AC voltage is given as v=0.04sin(2000t+60 degree)V. Determine the frequency, the angular frequency, instantaneous voltage when t=160 micro sec. What is the time represented by a 60 degree phase angle.
- Given v=200 sin 377t volts and i=8 sin(377t -30 degree) amperes for an AC circuit, determine (i) Power factor (ii) Power (iii) Apparent power (iv) Reactive power. Indicate the unit of power calculated.
- The instantaneous values of two alternating voltages are represented respectively by v_1= 60 sin theta volts and v_2=40 sin((theta-pi/3) volts. Calculate the (i) Sum & (ii) Difference of voltages.
- An alternating current i is given by i=100 sin 314 t. Find the (i) Amplitude (ii) Frequency (iii) Time period (iv) Form factor (v) Peak factor
- A parallel circuit consists of 20 ohms in series with an inductive reactance of 15 ohms in one branch and resistance of 30 ohms in series with a capacitive reactance of 20 ohms in the other branch. Determine the current and power dissipated in each branch if the total current drawn is 10 at an angle of (-30) degrees.
- For the current waveform shown in figure, find (i) Peak current (ii) Average current (iii) Periodic time (iv) Frequency (v) Instantaneous current at t=3 ms.
