A coil of resistance 10 ohms and inductance of 0.1 H is connected in series with a 150 micro farad capacitor across a 200 V, 50 Hz supply. Calculate (i) Inductive reactance (ii) Capacitive reactance (iii) Impedance (iv) Current (v) Power factor (vi) Voltage across coil (vii) Voltage across capacitor.

## Problem

## Question

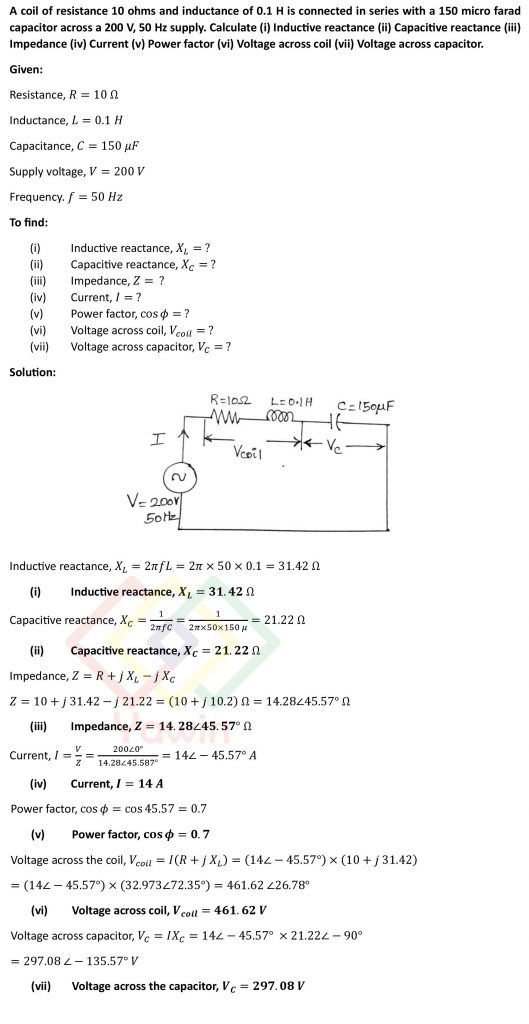

A coil of resistance 10 ohms and inductance of 0.1 H is connected in series with a 150 micro farad capacitor across a 200 V, 50 Hz supply. Calculate (i) Inductive reactance (ii) Capacitive reactance (iii) Impedance (iv) Current (v) Power factor (vi) Voltage across coil (vii) Voltage across capacitor.

## Topic

AC Circuit Fundamentals

Single phase AC Circuits
